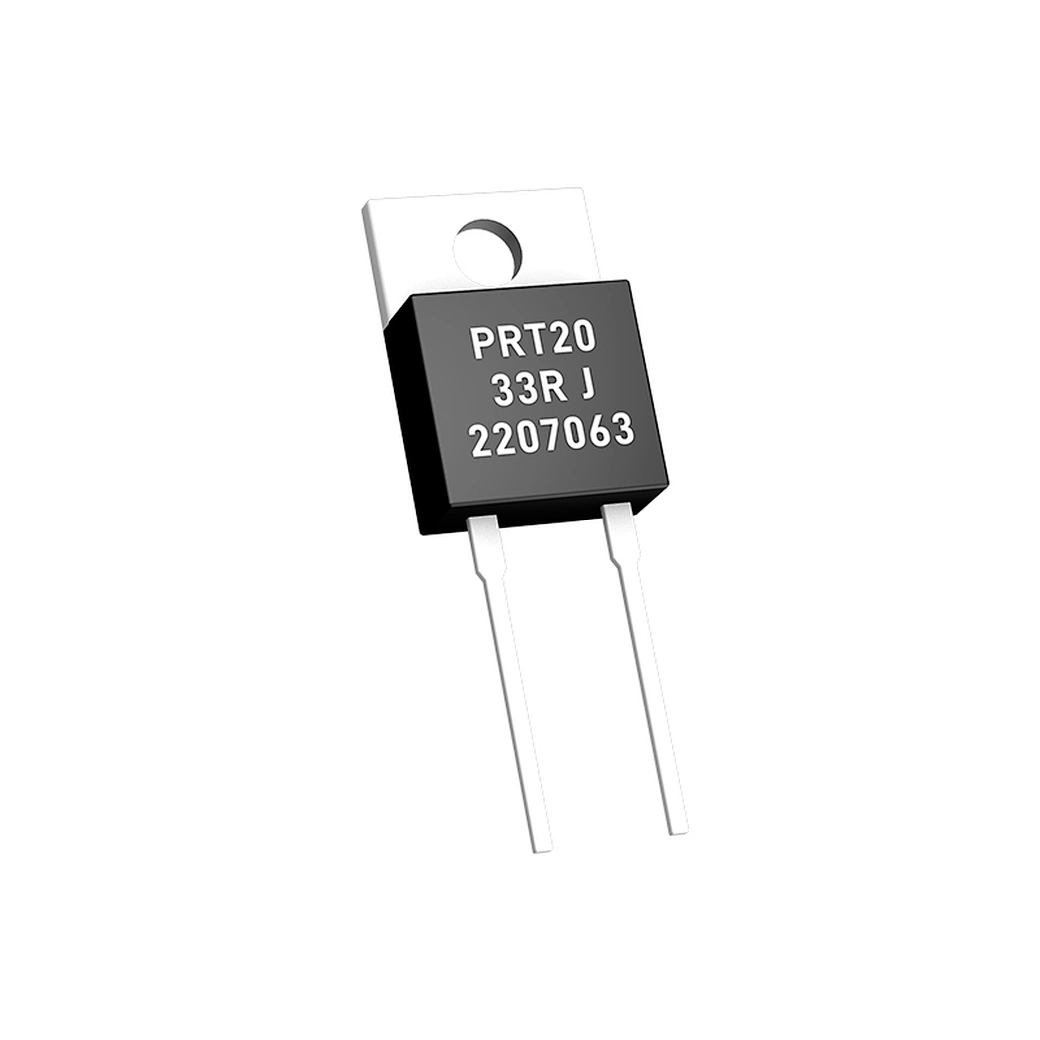

High Power Resistor/ High Power Load Resistor are an important electronic component that can withstand high power values without being damaged
Product Parameters：
- Power: 20W~50W
- Resistance: 0.01Ω~100KΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ≤300ppm
Product Features:
- Impact resistance
- High power, fast heat dissipation
- High power, high stability
- High temperature resistance
- Strong overload capacity
- Special resistance values can be customized
- High Power Resistor/ High Power Load Resistor
Application scenarios：
- Inverter, charging pile,
- industrial power supply,
- lithium battery,
- communication equipment, etc.
- Sampling resistor,
- current sensing resistor,
- shunt, current limiting
- High Power Resistor/ High Power Load Resistor
Product usage suggestions：
- During the use of the product, pay attention to surface protection to prevent defects such as bumps and scratches on the product surface.
- When installing and using the product, avoid the influence of mechanical stress on the product.
- The long-term operating power of the product should be less than or equal to the rated power to avoid resistance drift caused by overload during long-term use.
- When using the product under high-temperature or poor heat dissipation conditions, the power reduction curve should be referred to for derating application
- High Power Resistor/ High Power Load Resistor
High Power Resistor/ High Power Load Resistor support customize
Support customize, welcome to contact us for more solutions.
|
Series
|
Power |
Resistance (min) |
Resistance (max) |
Tolerance |
TCR (ppm/℃) |
Part |
| TO-220 |
20W~50W |
0.01Ω |
100 KΩ |
±0.5%,±1%,±5% |
≤300ppm |
TO-220 |
