Product Features:
Application Areas：

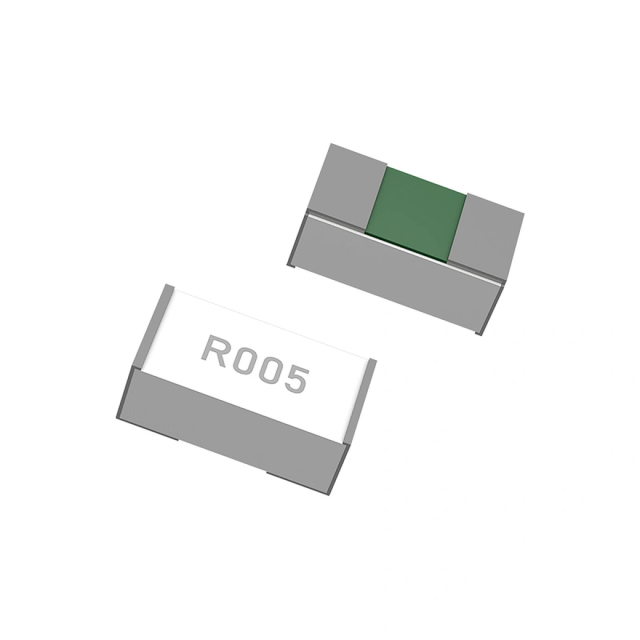

Metal Film Resistors/ AEC-Q200 Resistors/ Low TCR Resistors support customize
Support customize, welcome to contact us for more solutions.
| Package | Power | Resistance (min) | Resistance (max) | Tolerance | TCR (ppm/℃) |
| 603 | 1/2W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 75 mΩ | 0.5% 1% | |||
| 805 | 3/4W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 200 mΩ | 0.5% 1% | |||
| 1206 | 1W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 500 mΩ | 0.5% 1% | |||
| 2010 | 1.5W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 400 mΩ | 0.5% 1% | |||
| 2512 | 2W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 400 mΩ | 0.5% 1% | |||
| 3921 | 3W | 2 mΩ | 9 mΩ | 0.10% | ±5 ppm~±100 ppm |
| 10 mΩ | 100 mΩ | 0.5% 1% |
